NEW COSMOS – BIE, Suction Type Gas Detectors

Suction Type Gas Detectors



PS-7 Series Single Channel Gas Detector

PS-7 – Single channel gas detector

A suction type detector for indoor use. Sensor units are factory calibrated and delivered to site ready for use.

Optional communication module for DeviceNet interface or PoE, ModBus/TCP.

SH-WAD Series Single Channel Gas Detector

Reliable and well proven
The SH-WAD range gas detectors have become the standard safety solutions for many production facilities and research centres. They are not only used in cleanrooms but also very useful in many other hazardous environments. The SH-WAD gas detectors can be equipped with universal plug-in modules for the provision of additional functions and communication protocols.

All units comply with the most stringent quality standards and are extremely reliable. With the integrated self diagnostics functions you are quickly notified on any possible disruption. In-Control Software will provide access to additional information about any changes in the status of the unit. By using an overall data-acquisition and monitoring system like SIMS-NX it is even possible to monitor the status of all detectors real-time. In this way there will never be a lack of clarity or information in case of an event.

There are 2 models in the SH-1000-WAD series:

    • SH-1003-WAD
    • SH-1007-WAD including pyrolyzer

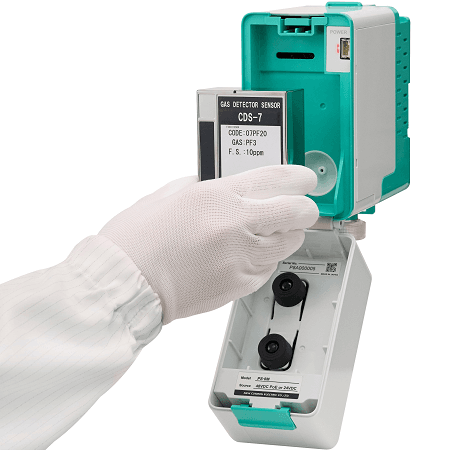

/CDS sensor option: The SH-WAD series detectors are fitted with the ease of use cartridge type (CDS-7/CLS-7/CHS-7/COS-7) sensors. Other options available on request.

SH-WAD Series Multi Channel Gas Detector

Reliable and well proven
The SH-WAD range gas detectors have become the standard safety solutions for many production facilities and research centres. They are not only used in cleanrooms but also very useful in many other hazardous environments. The SH-WAD gas detectors can be equipped with universal plug-in modules for the provision of additional functions and communication protocols.

All units comply with the most stringent quality standards and are extremely reliable. With the integrated self diagnostics functions you are quickly notified on any possible disruption. In-Control Software will provide access to additional information about any changes in the status of the unit. By using an overall data-acquisition and monitoring system like SIMS-NX it is even possible to monitor the status of all detectors real-time. In this way there will never be a lack of clarity or information in case of an event.

There are several models in the SH-2000-WAD and SH-4000-WAD series:

    • SH-2001-WAD (up to 2 sensors with 1 pump)
    • SH-2002-WAD (up to 2 sensors with 2 pumps)
    • SH-4001-WAD (up to 4 sensors with 1 pump)
    • SH-4002-WAD (up to 4 sensors with 2 pumps)
    • SH-4004-WAD (up to 4 sensors with 4 pumps)

/CDS sensor option: The SH-WAD series detectors are fitted with the ease of use cartridge type (CDS-7/CLS-7/CHS-7/COS-7) sensors. Other options available on request.

Single pump units are normally used for applications where in one location multiple gases need to detected such as in tools and VMB’s

Multi pump units are normally used for applications where in multiple locations single gases need to be detected such as in gas cabinets. A SH-4004-WAD detector can monitor up to 4 single gas cabinets even if the gases in each cabinet are different.

By using the multi channel SH-WAD series significant cost reduction can be achieved because of less installation cost, but also because the multi channels detectors only use single processors and relay functions.

SH-WAD/TEOS Detector IPA Compensated

Reliable and well proven
The SH-WAD range gas detectors have become the standard safety solutions for many production facilities and research centres. They are not only used in cleanrooms but also very useful in many other hazardous environments. The SH-WAD gas detectors can be equipped with universal plug-in modules for the provision of additional functions and communication protocols.

All units comply with the most stringent quality standards and are extremely reliable. With the integrated self diagnostics functions you are quickly notified on any possible disruption. In-Control Software will provide access to additional information about any changes in the status of the unit. By using an overall data-acquisition and monitoring system like SIMS-NX it is even possible to monitor the status of all detectors real-time. In this way there will never be a lack of clarity or information in case of an event.

The SH-4001-WAD/TEOS gas detector is a suction type detector with two integrated sensors. Because of a smart algorithm it can see the difference between TEOS and IPA. This enables the detector to detect TEOS without interference of IPA.

SH-WAD/NDIR Gas Detector

Reliable and well proven
The SH-WAD range gas detectors have become the standard safety solutions for many production facilities and research centres. They are not only used in cleanrooms but also very useful in many other hazardous environments. The SH-WAD gas detectors can be equipped with universal plug-in modules for the provision of additional functions and communication protocols.

All units comply with the most stringent quality standards and are extremely reliable. With the integrated self diagnostics functions you are quickly notified on any possible disruption. In-Control Software will provide access to additional information about any changes in the status of the unit. By using an overall data-acquisition and monitoring system like SIMS-NX it is even possible to monitor the status of all detectors real-time. In this way there will never be a lack of clarity or information in case of an event.

The SH-4001-WAD/NDIR gas detector is a suction type detector with a infrared (IR) type sensors. The sensor detects next to N2O Nitrous oxide at 0-300ppm other gases like sulfer hexafluride (SF6), carbon tetrafluoride CF4 or trifluoromethane (R-23) (CHF3).

SH-WAD/EPD Series Gas Detector for Scrubber Applications

Reliable and well proven
The SH-WAD range gas detectors have become the standard safety solutions for many production facilities and research centres. They are not only used in cleanrooms but also very useful in many other hazardous environments. The SH-WAD gas detectors can be equipped with universal plug-in modules for the provision of additional functions and communication protocols.

All units comply with the most stringent quality standards and are extremely reliable. With the integrated self diagnostics functions you are quickly notified on any possible disruption. In-Control Software will provide access to additional information about any changes in the status of the unit. By using an overall data-acquisition and monitoring system like SIMS-NX it is even possible to monitor the status of all detectors real-time. In this way there will never be a lack of clarity or information in case of an event.

For Scrubber applications the end-point of the scrubber lifetime is measured at 80-90% of the scrubber granulate. When this point is reached, the detector will give an alarm. To protect the sensor, the internal pump is timed. This means that the sample is only measured at 15% of the time. For this application this is more than enough.

There are 2 models in the SH-1000WAD series:

    • SH-1003-WAD/EPD
    • SH-1007-WAD/EPS including pyrolyzer

Multichannel versions are also available like the SH-2000-WAD series and the SH-4000-WAD series.

PD-12 ATEX Series Combustible Gas Detector

PD-12 type gas detector

A suction type ATEX detector with a very strong design. Suitable to detect a wide range of flammable and toxic gases in industrial applications and locations with limited access.

A unique detector in an ATEX enclosure with built in pump.

There are 3 models available:

    • PD-12A for measurement of combustible gases in ppm range
    • PD-12B for measurement of combustible gases in %LEL range
    • PD-12C for measurement of combustible gases in %vol. range

Also available as SIL 1 version.

Gas Detection Panel for Paint Shops

Gas monitoring panel for paint-shops.

Combustible and toxic gas detection solution with custom made integrated sample panel for paint-shop applications in the automotive industry.

Environment in a car manufacturing plant near the paint shop is very difficult to detect. Only when cooling, filtering and taking the moisture out of the gas sample will make sure that the gas detection will work in a proper way. The long history in this application and the unique product solution New Cosmos is offering makes that many car manufacturers use our gas detection panels near their paint shops
